Wikispeedia

Download worked project

Browse files online

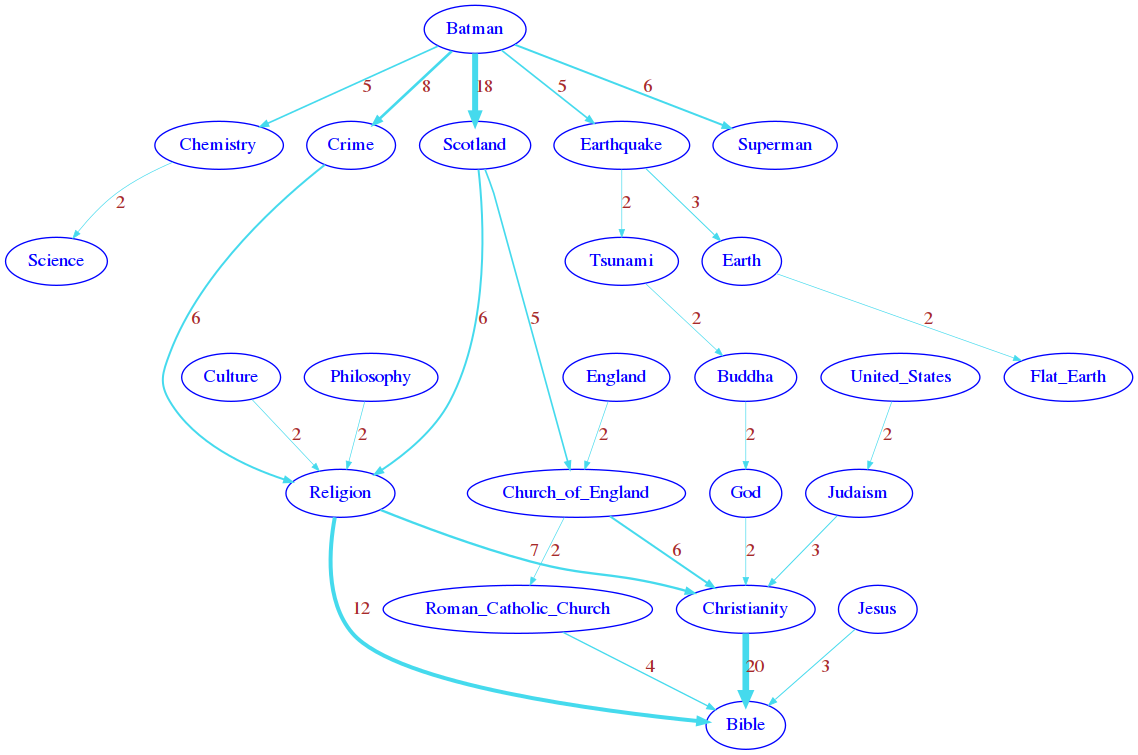

What is the semantic distance between Batman and the Bible? Wikispeedia is a fun game where you are given (or can choose) apparently unrelated source and a target Wikipedia pages, and you are asked to reach target page by only clicking links you find along the pages you visit. These click paths provide valuable information regarding human behaviour and the semantic connection between different topics, for example search engines might use such information to better understand user queries. You will analyze a dataset of such paths.

Data source: https://snap.stanford.edu/data/wikispeedia.html

• Robert West and Jure Leskovec: Human Wayfinding in Information Networks. 21st International World Wide Web Conference (WWW), 2012.

• Robert West, Joelle Pineau, and Doina Precup: Wikispeedia: An Online Game for Inferring Semantic Distances between Concepts. 21st International Joint Conference on Artificial Intelligence (IJCAI), 2009.

REQUIREMENTS: Having read Relational data tutorial , which contains also instructions for installing required libraries.

What to do

1. Unzip exercises zip in a folder, you should obtain something like this:

wikispeedia-prj
    wikispeedia.ipynb
    wikispeedia-sol.ipynb
    paths_finished.tsv
    soft.py
    jupman.py

WARNING: to correctly visualize the notebook, it MUST be in an unzipped folder !

2. open Jupyter Notebook from that folder. Two things should open, first a console and then a browser. The browser should show a file list: navigate the list and open the notebook wikispeedia.ipynb

3. Go on reading the notebook, and write in the appropriate cells when asked

Shortcut keys:

• to execute Python code inside a Jupyter cell, press Control + Enter

• to execute Python code inside a Jupyter cell AND select next cell, press Shift + Enter

• to execute Python code inside a Jupyter cell AND a create a new cell aftwerwards, press Alt + Enter

• If the notebooks look stuck, try to select Kernel -> Restart

The dataset

Each row of the dataset paths_finished.tsv is a user session, where user navigates from start page to end page. Columns are hashedIpAddress, timestamp, durationInSec, path and rating.

We define a session group as all sessions which have same start page and same end page, for example all these paths start with Linguistics and end in Rome:

import pandas as pd
import numpy as np
pd.options.display.max_colwidth = None
df = pd.read_csv('paths_finished.tsv', encoding='UTF-8', skiprows=16, header=None, sep='\t')
df[5890:5902]

	0	1	2	3	4
5890	2f8c281d5e0b0e93	1248913182	106	Linguistics;Philosophy;Aristotle;Ancient_Greece;Italy;Rome	3.0
5891	389b67fa365b727a	1249604227	89	Linguistics;Language;English_language;Latin;Rome	2.0
5892	0299542414c3f20a	1257970576	94	Linguistics;Philosophy;Plato;Latin;Rome	NaN
5893	2b6e83d366a7514d	1260188882	113	Linguistics;Philosophy;Thomas_Aquinas;Italy;Rome	2.0
5894	0d57c8c57d75e2f5	1282028286	153	Linguistics;Language;Spanish_language;Vulgar_Latin;Roman_Empire;Rome	NaN
5895	0d57c8c57d75e2f5	1295244051	62	Linguistics;Philosophy;Socrates;Ancient_Greece;Ancient_Rome;Rome	1.0
5896	772843f73d9cf93d	1307880434	177	Linguistics;Language;German_language;Latin_alphabet;<;Italy;Rome	NaN
5897	654430d34a08a0f5	1339755238	81	Linguistics;Philosophy;Augustine_of_Hippo;Italy;Rome	2.0
5898	12470aee3d5ad152	1344167616	40	Linguistics;Philosophy;Plato;Italy;Rome	NaN
5899	6365b049395c53ce	1345421532	67	Linguistics;Culture;Ancient_Rome;Rome	1.0
5900	05786cb24102850d	1347671980	65	Linguistics;Language;English_language;Latin;Rome	2.0
5901	369a3f7e77700217	1349302559	56	Linguistics;Language;English_language;Latin;Rome	NaN

In this other session group, all sessions start with Pikachu and end with Sun:

df[45121:45138]

	0	1	2	3	4
45121	0d57c8c57d75e2f5	1278403914	17	Pikachu;North_America;Earth;Planet;Sun	1.0
45122	0d57c8c57d75e2f5	1278403938	42	Pikachu;Tree;Sunlight;Sun	NaN
45123	0d57c8c57d75e2f5	1278403972	17	Pikachu;Tree;Plant;<;Sunlight;Sun	1.0
45124	0d57c8c57d75e2f5	1278403991	8	Pikachu;Tree;Sunlight;Sun	NaN
45125	0d57c8c57d75e2f5	1278404007	9	Pikachu;Tree;Sunlight;Sun	1.0
45126	0d57c8c57d75e2f5	1278404048	8	Pikachu;Tree;Sunlight;Sun	NaN
45127	0d57c8c57d75e2f5	1278404061	16	Pikachu;Tree;Sunlight;Sun	NaN
45128	0d57c8c57d75e2f5	1278404065	8	Pikachu;Tree;Sunlight;Sun	NaN
45129	0d57c8c57d75e2f5	1278404070	8	Pikachu;Tree;Sunlight;Sun	NaN
45130	0d57c8c57d75e2f5	1278404089	8	Pikachu;Tree;Sunlight;Sun	NaN
45131	0d57c8c57d75e2f5	1278404095	7	Pikachu;Tree;Sunlight;Sun	NaN
45132	0d57c8c57d75e2f5	1278404101	9	Pikachu;Tree;Sunlight;Sun	NaN
45133	0d57c8c57d75e2f5	1278404117	6	Pikachu;Tree;Sunlight;Sun	NaN
45134	0d57c8c57d75e2f5	1278404124	10	Pikachu;Tree;Sunlight;Sun	NaN
45135	0d57c8c57d75e2f5	1278404129	9	Pikachu;Tree;Sunlight;Sun	NaN
45136	0d57c8c57d75e2f5	1278404142	7	Pikachu;Tree;Sunlight;Sun	NaN
45137	0d57c8c57d75e2f5	1278404145	6	Pikachu;Tree;Sunlight;Sun	NaN

1. filter_back

Whenever a user clicks the Back button, she navigates back one page. This fact is tracked in the data by the presence of a '<' symbol. Write a function which RETURN a NEW path without pages which were navigated back.

NOTE: you can have duplicates even without presence of <, because a user might end up to a previous page just by following circular links.

DO NOT misuse search methods, I’m watching you }:-[

Show solution

def filter_back(path):

    ret = []

    for page in path:
        if page == '<':
            if len(ret) > 0:
                ret.pop()
        else:
            ret.append(page)
    return ret


assert filter_back([]) == []
assert filter_back(['alfa']) == ['alfa']
assert filter_back(['beta','alfa','charlie']) == ['beta','alfa','charlie']

assert filter_back(['charlie', 'tango','<']) == ['charlie']
inp = ['charlie', 'tango','<']
assert filter_back(inp) == ['charlie']  # new
assert inp == ['charlie', 'tango','<']
assert filter_back(['alfa', 'beta', 'charlie','<','<','delta']) == ['alfa','delta']
assert filter_back(['alfa', 'beta', 'charlie','delta','eagle','<','<','golf','<','<','hotel']) \
       == ['alfa','beta','hotel']

# circular paths
assert filter_back(['alfa','beta','alfa','alfa','beta']) ==  ['alfa','beta','alfa','alfa','beta']
assert filter_back(['alfa','beta','alfa','<','charlie','charlie','delta','charlie','<','charlie','delta']) \
       == ['alfa','beta','charlie','charlie','delta','charlie','delta']

def filter_back(path):
    raise Exception('TODO IMPLEMENT ME !')

assert filter_back([]) == []
assert filter_back(['alfa']) == ['alfa']
assert filter_back(['beta','alfa','charlie']) == ['beta','alfa','charlie']

assert filter_back(['charlie', 'tango','<']) == ['charlie']
inp = ['charlie', 'tango','<']
assert filter_back(inp) == ['charlie']  # new
assert inp == ['charlie', 'tango','<']
assert filter_back(['alfa', 'beta', 'charlie','<','<','delta']) == ['alfa','delta']
assert filter_back(['alfa', 'beta', 'charlie','delta','eagle','<','<','golf','<','<','hotel']) \
       == ['alfa','beta','hotel']

# circular paths
assert filter_back(['alfa','beta','alfa','alfa','beta']) ==  ['alfa','beta','alfa','alfa','beta']
assert filter_back(['alfa','beta','alfa','<','charlie','charlie','delta','charlie','<','charlie','delta']) \
       == ['alfa','beta','charlie','charlie','delta','charlie','delta']

2. load_db

Load the tab-separated file paths_finished.tsv with a CSV Reader. The file has some rows to skip and no column names: parse it and RETURN a list of dictionaries, with hashedIpAddress, timestamp, durationInSec, path and rating as fields:

• path: convert it with filter_back function

• timestamp and durationInSec: convert to integer

• rating: convert to integer, if NULL, set it to None

Example:

>>> sessions_db = load_db('paths_finished.tsv')

Parsed 51318 sessions

>>> sessions_db[:2]

[{'hashedIpAddress': '6a3701d319fc3754',
  'timestamp': 1297740409,
  'durationInSec': 166,
  'path': ['14th_century',
   '15th_century',
   '16th_century',
   'Pacific_Ocean',
   'Atlantic_Ocean',
   'Accra',
   'Africa',
   'Atlantic_slave_trade',
   'African_slave_trade'],
  'rating': None},
 {'hashedIpAddress': '3824310e536af032',
  'timestamp': 1344753412,
  'durationInSec': 88,
  'path': ['14th_century',
   'Europe',
   'Africa',
   'Atlantic_slave_trade',
   'African_slave_trade'],
  'rating': 3}]

Show solution

import csv

def load_db(filename):



    with open(filename, encoding='utf-8', newline='') as f:
        my_reader = csv.reader(f, delimiter='\t')

        ret = []

        for row in my_reader:
            if len(row) < 2:
                continue

            ses = { "hashedIpAddress": row[0],
                    "timestamp" : int(row[1]),
                    "durationInSec" : int(row[2]),
                    "path" : filter_back(row[3].split(';')),
                    "rating": int(row[4]) if row[4] != 'NULL' else None
            }

            ret.append(ses)

        print('Parsed', len(ret), 'sessions')

        return ret


sessions_db = load_db('paths_finished.tsv')

sessions_db[:2]

Parsed 51318 sessions

[{'hashedIpAddress': '6a3701d319fc3754',
  'timestamp': 1297740409,
  'durationInSec': 166,
  'path': ['14th_century',
   '15th_century',
   '16th_century',
   'Pacific_Ocean',
   'Atlantic_Ocean',
   'Accra',
   'Africa',
   'Atlantic_slave_trade',
   'African_slave_trade'],
  'rating': None},
 {'hashedIpAddress': '3824310e536af032',
  'timestamp': 1344753412,
  'durationInSec': 88,
  'path': ['14th_century',
   'Europe',
   'Africa',
   'Atlantic_slave_trade',
   'African_slave_trade'],
  'rating': 3}]

import csv

def load_db(filename):
    raise Exception('TODO IMPLEMENT ME !')

sessions_db = load_db('paths_finished.tsv')

sessions_db[:2]

# TESTING
from pprint import pprint
from expected_db import expected_db
for i in range(len(expected_db)):
    if expected_db[i] != sessions_db[i]:
        print('\nERROR at index', i, ':')
        print('  ACTUAL:')
        pprint(sessions_db[i])
        print('  EXPECTED:')
        pprint(expected_db[i])
        break
if len(sessions_db) != len(expected_db):
    print("ERROR: different lengths! sessions_db:", len(sessions_db), "expected_db", len(expected_db))

3. calc_stats

Write a function which takes the sessions db and RETURN a NEW dictionary which maps sessions groups expressed as tuples (start, end) to a dictionary of statistics about them

• dictionary key: tuple with start,end page

• sessions: the number of sessions in that group

• avg_len: the average length (as number of edges) of all paths in the group

• pages: the total number of DISTINCT pages found among all sessions in that group

• freqs: a dictionary which maps edges found in all sessions of that group to their count

• max_freq: the highest count among all freqs

Output example (for complete output see expected_stats_db.py):

>>> calc_stats(sessions_db)
{
    ('Linguistics', 'Rome'): {'avg_len': 4.166666666666667,
                              'freqs': { ('Ancient_Greece', 'Ancient_Rome'): 1,
                                         ('Ancient_Greece', 'Italy'): 1,
                                         ('Ancient_Rome', 'Rome'): 2,
                                         ('Aristotle', 'Ancient_Greece'): 1,
                                         ('Augustine_of_Hippo', 'Italy'): 1,
                                         ('Culture', 'Ancient_Rome'): 1,
                                         ('English_language', 'Latin'): 3,
                                         ('German_language', 'Italy'): 1,
                                         ('Italy', 'Rome'): 5,
                                         ('Language', 'English_language'): 3,
                                         ('Language', 'German_language'): 1,
                                         ('Language', 'Spanish_language'): 1,
                                         ('Latin', 'Rome'): 4,
                                         ('Linguistics', 'Culture'): 1,
                                         ('Linguistics', 'Language'): 5,
                                         ('Linguistics', 'Philosophy'): 6,
                                         ('Philosophy', 'Aristotle'): 1,
                                         ('Philosophy', 'Augustine_of_Hippo'): 1,
                                         ('Philosophy', 'Plato'): 2,
                                         ('Philosophy', 'Socrates'): 1,
                                         ('Philosophy', 'Thomas_Aquinas'): 1,
                                         ('Plato', 'Italy'): 1,
                                         ('Plato', 'Latin'): 1,
                                         ('Roman_Empire', 'Rome'): 1,
                                         ('Socrates', 'Ancient_Greece'): 1,
                                         ('Spanish_language', 'Vulgar_Latin'): 1,
                                         ('Thomas_Aquinas', 'Italy'): 1,
                                         ('Vulgar_Latin', 'Roman_Empire'): 1},
                           'max_freq': 6,
                           'pages': 19,
                           'sessions': 12},
     ('Pikachu', 'Sun'):   {'avg_len': 3.0588235294117645,
                            'freqs': {('Earth', 'Planet'): 1,
                                      ('North_America', 'Earth'): 1,
                                      ('Pikachu', 'North_America'): 1,
                                      ('Pikachu', 'Tree'): 16,
                                      ('Planet', 'Sun'): 1,
                                      ('Sunlight', 'Sun'): 16,
                                      ('Tree', 'Sunlight'): 16},
                            'max_freq': 16,
                            'pages': 7,
                            'sessions': 17},
    .
    .
    .
}

Show solution

def calc_stats(sessions):

    ret = {}

    for session in sessions:
        path = session['path']

        t = (path[0], path[-1])
        if t in ret:
            ret[t]['avg_len'] += len(path) - 1
            ret[t]['sessions'] += 1

            ret[t]['pages_set'].update(path)

        else:
            ret[t] = { 'avg_len' : len(path) - 1,
                       'sessions' : 1,
                       'pages_set' : set(path),
                       'freqs' : {}}

        freqs = ret[t]['freqs']

        for i in range(1, len(path)):
            seg = tuple([path[i-1], path[i]])
            if seg in freqs:
                freqs[seg] += 1
            else:
                freqs[seg] = 1

    for t in ret:
        ret[t]['avg_len'] = ret[t]['avg_len'] / ret[t]['sessions']
        ret[t]['pages'] = len(ret[t]['pages_set'])
        freq_vs = ret[t]['freqs'].values()
        ret[t]['max_freq'] = max(freq_vs) if len(freq_vs) > 0 else 0
        del ret[t]['pages_set']

    return ret


stats_db = calc_stats(sessions_db)

def calc_stats(sessions):
    raise Exception('TODO IMPLEMENT ME !')

stats_db = calc_stats(sessions_db)

# TESTING
from pprint import pprint
from expected_stats_db import expected_stats_db
for t in expected_stats_db:
    if not t in stats_db:
        print('\nERROR: missing key for session group', t)
        break
    elif expected_stats_db[t] != stats_db[t]:
        print('\nERROR at key for session group', t, ':')
        print('  ACTUAL:')
        pprint(stats_db[t])
        print('  EXPECTED:')
        pprint(expected_stats_db[t])
        break

diff = stats_db.keys() - expected_stats_db.keys()
if len(diff) > 0:
    print('ERROR! Found these extra keys in stats_db:', diff)

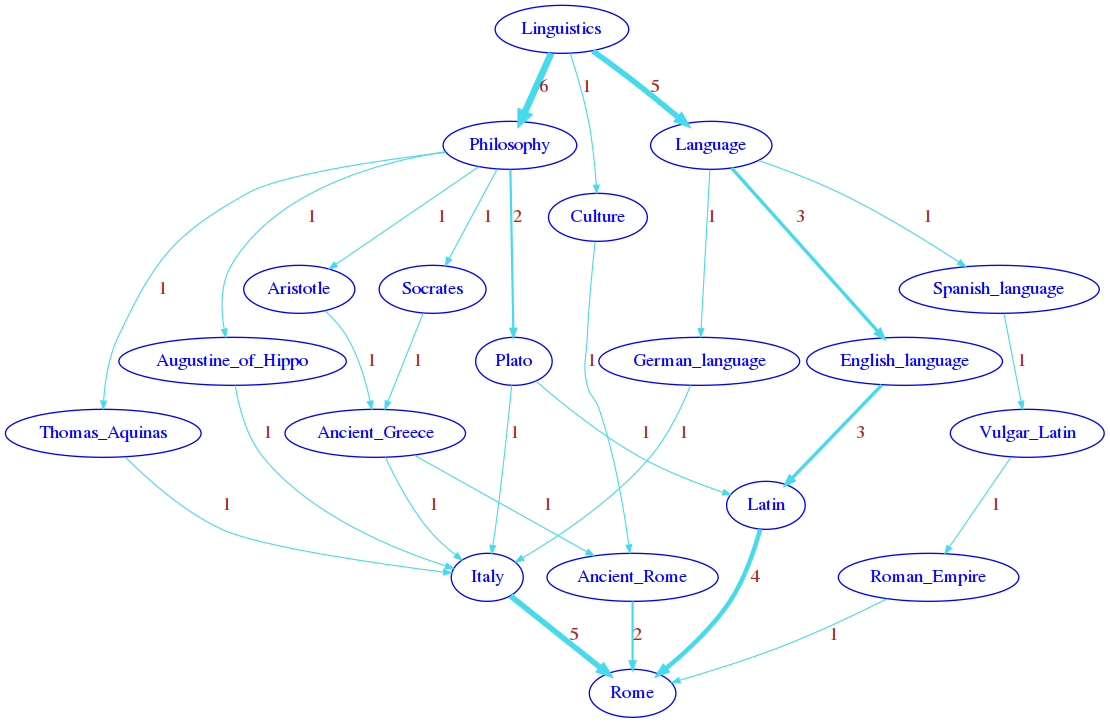

4. plot_network

Given a sessions group (start_page, target_page), we want to display the pages clicked by users for all its sessions. Since some sessions share edges, we will show their click frequency.

• Set edges attributes 'weight', 'label' as \(freq\), 'penwidth' as \(5 \large \frac{freq}{max\_freq}\) and 'color' as '#45daed'

• Only display edges (and pages connected by such edges) for which the click count is strictly greater than the given threshold

• NOTE: when applying a threshold, it’s fine if some nodes don’t appear linked to either source or target

Example 1:

>>> plot_network(stats_db,'Linguistics', 'Rome')

Example 2:

>>> plot_network(stats_db, 'Batman', 'Bible', 0)  # default threshold zero, big graph

Show solution

from soft import draw_nx
import networkx as nx

def plot_network(stats, source_page, target_page, threshold=0):


    G = nx.DiGraph()

    st = stats[(source_page, target_page)]

    for p1,p2 in st['freqs']:

        d = st['freqs'][(p1,p2)]

        if d > threshold:

            G.add_node(p2)
            G.add_edge(p1, p2)

            G[p1][p2]['weight'] = d
            G[p1][p2]['label'] = d
            G[p1][p2]['penwidth']= 5*d/st['max_freq']
            G[p1][p2]['color']= '#45daed'


    draw_nx(G

              )


plot_network(stats_db,'Linguistics', 'Rome')

Image saved to file:  expected-Linguistics-Rome-0.png

from soft import draw_nx
import networkx as nx

def plot_network(stats, source_page, target_page, threshold=0):
    raise Exception('TODO IMPLEMENT ME !')

plot_network(stats_db,'Linguistics', 'Rome')

plot_network(stats_db, 'Batman', 'Bible', 0)  # default threshold zero, big graph

plot_network(stats_db, 'Batman', 'Bible', 1)   # we take only edges > 1
