Visualization - Numpy images

Download exercises zip

Browse files online

Images are a direct application of matrices, and show we can nicely translate a numpy matrix cell into a pixel on the screen.

Typically, images are divided into color channels: a common scheme is the RGB model, which stands for Red Green and Blue. In this tutorial we will load an image where each pixel is made of three integer values ranging from 0 to 255 included. Each integer indicates how much of a color component is present in the pixel, with zero meaning absence and 255 bright colors.

What to do

• unzip exercises in a folder, you should get something like this:

visualization
    visualization1.ipynb
    visualization1-sol.ipynb
    visualization2-chal.ipynb
    visualization-images.ipynb
    visualization-images-sol.ipynb
    jupman.py

WARNING: to correctly visualize the notebook, it MUST be in an unzipped folder !

• open Jupyter Notebook from that folder. Two things should open, first a console and then browser. The browser should show a file list: navigate the list and open the notebook visualization-images.ipynb

• Go on reading that notebook, and follow instuctions inside.

Shortcut keys:

• to execute Python code inside a Jupyter cell, press Control + Enter

• to execute Python code inside a Jupyter cell AND select next cell, press Shift + Enter

• to execute Python code inside a Jupyter cell AND a create a new cell aftwerwards, press Alt + Enter

• If the notebooks look stuck, try to select Kernel -> Restart

Introduction

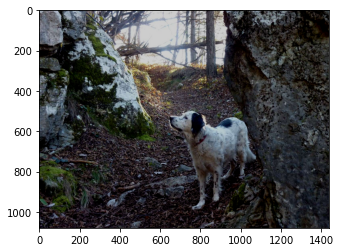

Let’s load the image:

# this is *not* a python command, it is a Jupyter-specific magic command,
# to tell jupyter we want the graphs displayed in the cell outputs
%matplotlib inline
import matplotlib.image as mpimg
import matplotlib.pyplot as plt
import numpy as np

img = mpimg.imread('lulu.jpg')
#img = mpimg.imread('il-piccolo-principe.jpg')
#img = mpimg.imread('rifugio-7-selle.jpg')
#img = mpimg.imread('alright.jpg')

plt.imshow(img)

<matplotlib.image.AxesImage at 0x7ff5875da550>

Monochrome

For an easy start, we first get a monochromatic view of the image we call gimg:

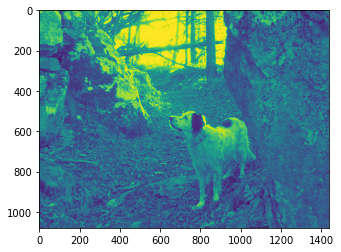

gimg = img[:,:,0]   # this trick selects only one channel (the red one)

plt.imshow(gimg)

<matplotlib.image.AxesImage at 0x7ff586c08fd0>

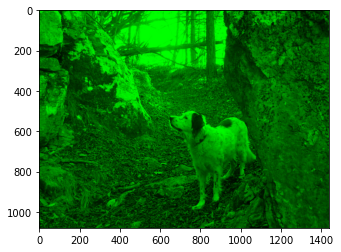

If we have taken the RED, why is it shown GREEN?? For Matplotlib, the picture is only a square matrix of integer numbers, for now it has no notion of the best color scheme we would like to see:

print(gimg)

[[209 209 210 ... 117 118 117]
 [214 214 215 ... 112 116 117]
 [217 217 217 ... 105 110 114]
 ...
 [ 36  33  30 ...  72  67  64]
 [ 42  36  31 ...  70  65  61]
 [ 37  31  24 ...  68  63  60]]

type(gimg)

numpy.ndarray

By default matplotlib shows the intensity of light using with a greenish colormap.

Luckily, many color maps are available, for example the 'hot' one:

plt.imshow(gimg, cmap='hot')

<matplotlib.image.AxesImage at 0x7ff586ba6d50>

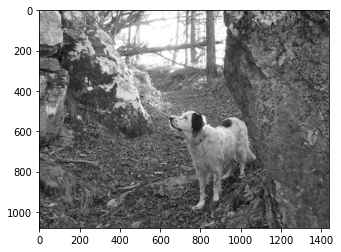

To avoid confusion, we will pick a proper gray colormap:

plt.imshow(gimg, cmap='gray')

<matplotlib.image.AxesImage at 0x7ff586b2ea50>

Let’s define this shorthand function to type a little less:

def gs(some_img):
    # vmin and vmax prevent normalization that occurs only with monochromatic images
    plt.imshow(some_img, cmap='gray', vmin=0, vmax=255)

gs(gimg)

Focus

Let’s try some simple transformation. As with regular Python lists, we can do slicing:

gs(gimg[350:1050,500:1200])

NOTE 1: differently from regular lists of lists, in Numpy we can write slices for different dimensions within the same square brackets

NOTE 2: We are still talking about matrices, so pictures also follow the very same conventions of regular algebra we’ve also seen with lists of lists: the first index is for rows and starts from 0 in the left upper corner, and second index is for columns.

NOTE 3: the indeces shown on the extracted picture are not the indeces of the original matrix!

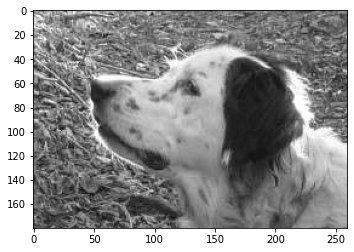

Exercise - Head focus

Try selecting the head:

Show solution

# write here

gs(gimg[470:650,600:860])

# write here

hstack and vstack

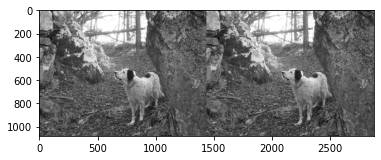

We can stitch together pictures with hstack and vstack. Note they produce a NEW matrix:

gs(np.hstack((gimg, gimg)))

gs(np.vstack((gimg, gimg)))

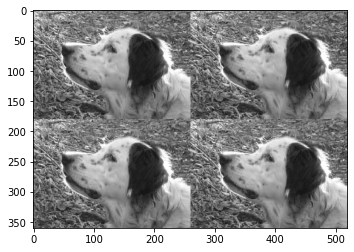

Exercise - Passport

Try to replicate somehow the head

Show solution

# write here
head = gimg[470:650,600:860]
col = np.vstack((head, head))
gs(np.hstack((col, col)))

# write here

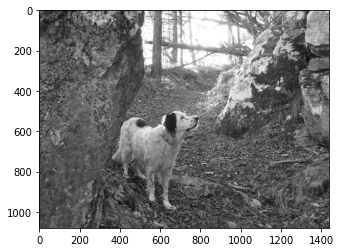

flip

A handy method for mirroring is flip:

gs(np.flip(gimg, axis=1))

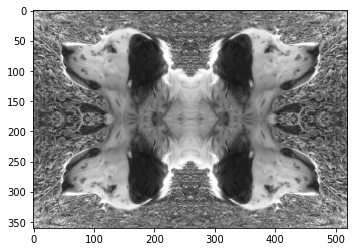

Exercise - Hall of mirrors

Try to replicate somehow the head, pointing it in different directions as in the example

Show solution

# write here
head = gimg[470:650,600:860]
col1 = np.vstack((head, np.flip(head, axis=0)))
gs(col1)
col2 = np.flip(col1, axis=0)
gs(np.hstack((col1,np.flip(col2))))

# write here

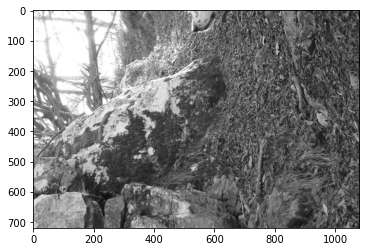

Exercise - The nose from above

Do some googling and find an appropriate method for obtaining this:

Show solution

# write here

gs(np.rot90(gimg[:,:gimg.shape[1]//2]))

# write here

Writing arrays

We can write into an array using square brackets:

arr = np.array([5,9,4,8,6])

arr[0] = 7

arr

array([7, 9, 4, 8, 6])

So far, nothing special. Let’s try to make a slice:

                #0 1 2 3 4
arr1 = np.array([5,9,4,8,6])
arr2 = arr1[1:3]
arr2

array([9, 4])

arr2[0] = 7

arr2

array([7, 4])

arr1  # the original was modified !!!

array([5, 7, 4, 8, 6])

WARNING: SLICE CELLS IN NUMPY ARE POINTERS TO ORIGINAL CELLS!

To prevent problems, you can create a deep copy by using the copy method:

                #0 1 2 3 4
arr1 = np.array([5,9,4,8,6])
arr2 = arr1[1:3].copy()
arr2

array([9, 4])

arr2[0] = 7

arr2

array([7, 4])

arr1  # remained the same

array([5, 9, 4, 8, 6])

Writing into images

Let’s go back to images. First note that gimg was generated by calling pt.imshow, which set it as READ-ONLY:

gimg[0,0] = 255  # NOT POSSIBLE WITH LOADED IMAGES!
---------------------------------------------------------------------------
ValueError                                Traceback (most recent call last)
<ipython-input-186-7d21dd84cac2> in <module>()
----> 1 img[0,0,0] = 4  # NOT POSSIBLE!

ValueError: assignment destination is read-only

If we want something we can write into, we need to perform a deep copy:

mimg = gimg.copy()  # *DEEP* COPY
mimg[0,0] = 255  # the copy is writable
mimg[0,0]

255

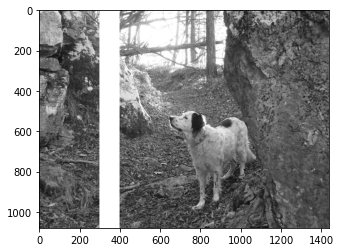

If we want to set an entire slice to a constant value, we can write like this:

mimg[:, 300:400] = 255

gs(mimg)

Exercise - Stripes

Write a program that given top-left coordinates tl and bottom-right coordinates br creates a NEW image nimg with lines drawn like in the example:

• use a width of 5 pixels

Show solution

tl = (450,600)
br = (650,830)

# write here

nimg = gimg.copy()  # *DEEP* COPY
nimg[tl[0]:tl[0]+5, :] = 255
nimg[br[0]:br[0]+5, :] = 255
nimg[:, tl[1]:tl[1]+5] = 255
nimg[:, br[1]:br[1]+5] = 255

gs(nimg)

tl = (450,600)
br = (650,830)

# write here

gs(gimg) # original must NOT change!

In a dark integer night

Let’s say we want to darken the scene. One simple approach would be to divide all the numbers by two:

gs(gimg // 2)

gimg // 2

array([[104, 104, 105, ...,  58,  59,  58],
       [107, 107, 107, ...,  56,  58,  58],
       [108, 108, 108, ...,  52,  55,  57],
       ...,
       [ 18,  16,  15, ...,  36,  33,  32],
       [ 21,  18,  15, ...,  35,  32,  30],
       [ 18,  15,  12, ...,  34,  31,  30]], dtype=uint8)

If we divide by floats we get an array of floats:

gimg / 3.14

array([[66.56050955, 66.56050955, 66.87898089, ..., 37.2611465 ,
        37.57961783, 37.2611465 ],
       [68.15286624, 68.15286624, 68.47133758, ..., 35.66878981,
        36.94267516, 37.2611465 ],
       [69.10828025, 69.10828025, 69.10828025, ..., 33.43949045,
        35.03184713, 36.30573248],
       ...,
       [11.46496815, 10.50955414,  9.55414013, ..., 22.92993631,
        21.33757962, 20.38216561],
       [13.37579618, 11.46496815,  9.87261146, ..., 22.29299363,
        20.70063694, 19.42675159],
       [11.78343949,  9.87261146,  7.6433121 , ..., 21.65605096,
        20.06369427, 19.10828025]])

To go back to unsigned bytes, you can use astype:

(gimg / 3.0).astype(np.uint8)

array([[69, 69, 70, ..., 39, 39, 39],
       [71, 71, 71, ..., 37, 38, 39],
       [72, 72, 72, ..., 35, 36, 38],
       ...,
       [12, 11, 10, ..., 24, 22, 21],
       [14, 12, 10, ..., 23, 21, 20],
       [12, 10,  8, ..., 22, 21, 20]], dtype=uint8)

We used division because it guarantees we will never go below zero, which is important when working with unsigned bytes as we’re doing here. Let’s see what happens when we violate the datatype bounds.

The Integer Shining

Intuitevely, if we want more light we can try increasing the matrices values but something terrible hides in the shadows….

gs(gimg + 30)  # mmm something looks wrong ...

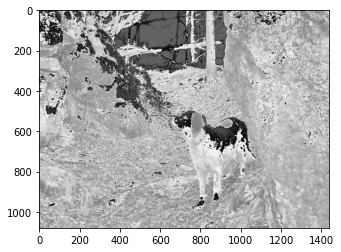

gs(gimg + 100)  # even worse!

Something really bad happened:

gimg + 100

array([[ 53,  53,  54, ..., 217, 218, 217],
       [ 58,  58,  59, ..., 212, 216, 217],
       [ 61,  61,  61, ..., 205, 210, 214],
       ...,
       [136, 133, 130, ..., 172, 167, 164],
       [142, 136, 131, ..., 170, 165, 161],
       [137, 131, 124, ..., 168, 163, 160]], dtype=uint8)

Why do we get values less than < 100 ??

This is not so weird, technically it’s called integer overflow and is the way CPU works with byte sized integers, so most programming languages actually behave like this. In regular Python you don’t notice it because standard Python allows for arbitrary sized integers, but that comes at a big performance cost that Numpy cannot afford, so in a sense we can say Numpy is ‘closer to the metal’ of the CPU.

Let’s see a simpler example:

arr = np.zeros(3, dtype=np.uint8)  # unsigned 8 bit byte, values from 0 to 255 included

arr

array([0, 0, 0], dtype=uint8)

arr[0] = 255

arr

array([255,   0,   0], dtype=uint8)

arr[0] += 1  # cycles back to zero

arr

array([0, 0, 0], dtype=uint8)

arr[0] -= 1  # cycles forward to 255

arr

array([255,   0,   0], dtype=uint8)

Going back to the image, how could we prevent exceeding the limit of 255?

np.minimum compares arrays cell by cell:

np.minimum(np.array([5,7,2]), np.array([9,4,8]))

array([5, 4, 2])

As well as matrices:

m1 = np.array([[5,7,2],
               [8,3,1]])
m2 = np.array([[9,4,8],
               [6,0,3]])
np.minimum(m1, m2)

array([[5, 4, 2],
       [6, 0, 1]])

If you pass a constant, it will automatically compare all matrix cells against that constant:

np.minimum(m1, 2)

array([[2, 2, 2],
       [2, 2, 1]])

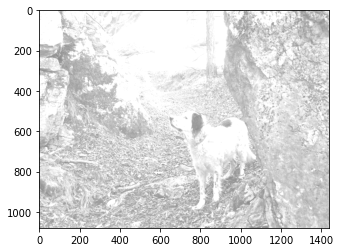

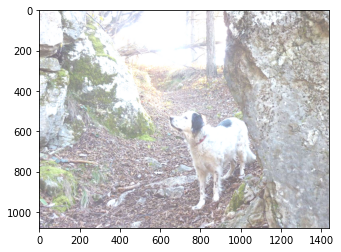

Exercise - Be bright

Now try writing some code which enhances scene luminosity by adding light=125 without distortions (you may still see some pixellation due to the fact we have taken just one color channel from the original image)

• DO NOT exceed 255 value for cells - if you see dark spots in your image where before there was white (i.e. background sky), it means color cycled back to small values!

• DO NOT write stuff like gimg + light, this would surely exceed the 255 bound !!

• MUST have unsigned bytes as cells type

HINT 1: if direct sum is not the way, which safe operations are there which surely won’t provoke any overflow?

HINT 2: you will need more than one step to solve the exercise

Show solution

light=125
# write here
gs(gimg + np.minimum(255 - gimg, light))

light=125
# write here

RGB - Get colorful

Let’s get a third dimension for representing colors. Our new third dimension will have three planes of integers, in this order:

0: Red

1: Green

2: Blue

plt.imshow(img)

<matplotlib.image.AxesImage at 0x7ff584617990>

type(img)

numpy.ndarray

img.shape

(1080, 1440, 3)

Each pixel is represented by three integer values:

print(img)

[[[209 223 236]
  [209 223 236]
  [210 224 237]
  ...
  [117 132 139]
  [118 132 141]
  [117 131 140]]

 [[214 228 241]
  [214 228 241]
  [215 229 242]
  ...
  [112 127 134]
  [116 131 138]
  [117 131 140]]

 [[217 229 243]
  [217 229 243]
  [217 229 243]
  ...
  [105 120 127]
  [110 125 132]
  [114 129 136]]

 ...

 [[ 36  28  49]
  [ 33  25  46]
  [ 30  22  43]
  ...
  [ 72  78  90]
  [ 67  73  87]
  [ 64  70  84]]

 [[ 42  34  55]
  [ 36  28  49]
  [ 31  23  44]
  ...
  [ 70  76  88]
  [ 65  71  85]
  [ 61  67  81]]

 [[ 37  29  50]
  [ 31  23  44]
  [ 24  16  37]
  ...
  [ 68  74  86]
  [ 63  69  83]
  [ 60  66  80]]]

Given a pixel coordinates, like 0,0, we can extract the color with a third coordinate like this:

img[0,0,0]  # red

209

img[0,0,1]  # green

223

img[0,0,2]  # blue

236

img[0,0]   # result is an array with three RGB colors

array([209, 223, 236], dtype=uint8)

Exercise - Focus - top left

plt.imshow(img[:100,:100,:])

<matplotlib.image.AxesImage at 0x7ff5845b1dd0>

Exercise - Focus - bottom - left

Show solution

# write here
plt.imshow(img[-100:,:100,:])

<matplotlib.image.AxesImage at 0x7ff5844b2f90>

# write here

<matplotlib.image.AxesImage at 0x7ff5844b2f90>

Exercise - Focus - bottom - right

Show solution

# write here
plt.imshow(img[-100:,-100:,:])

<matplotlib.image.AxesImage at 0x7ff5842d5090>

# write here

<matplotlib.image.AxesImage at 0x7ff5842d5090>

Exercise - Focus - top - right

Show solution

# write here
plt.imshow(img[:100,-100:,:])

<matplotlib.image.AxesImage at 0x7ff58432c990>

# write here

<matplotlib.image.AxesImage at 0x7ff58432c990>

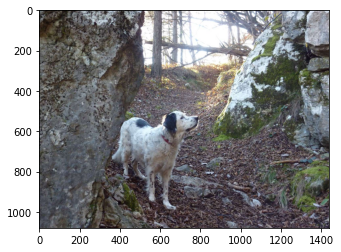

Exercise - Look the other way

Show solution

# write here
plt.imshow(np.fliplr(img))

<matplotlib.image.AxesImage at 0x7ff5845f71d0>

# write here

<matplotlib.image.AxesImage at 0x7ff5845f71d0>

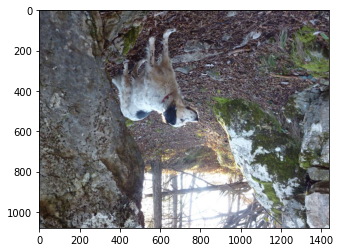

Exercise - Upside down world

Show solution

# write here
plt.imshow(np.fliplr(np.flipud(img)))

<matplotlib.image.AxesImage at 0x7ff58447e590>

# write here

<matplotlib.image.AxesImage at 0x7ff58447e590>

Exercise - Shrinking Walls - X

Show solution

# write here
plt.imshow(img[:,::2,:])

<matplotlib.image.AxesImage at 0x7ff584486e50>

# write here

<matplotlib.image.AxesImage at 0x7ff584486e50>

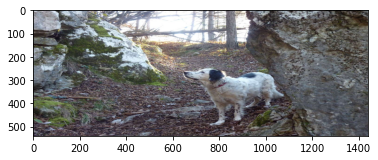

Exercise - Shrinking Walls - Y

Show solution

# write here
plt.imshow(img[::2,:,:])

<matplotlib.image.AxesImage at 0x7ff58427e7d0>

# write here

<matplotlib.image.AxesImage at 0x7ff58427e7d0>

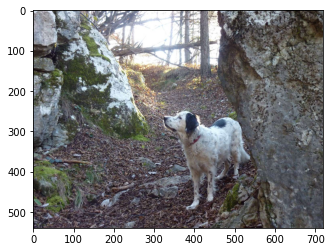

Exercise - Shrinking World

Show solution

# write here
plt.imshow(img[::2,::2,:])

<matplotlib.image.AxesImage at 0x7ff58420f1d0>

# write here

<matplotlib.image.AxesImage at 0x7ff58420f1d0>

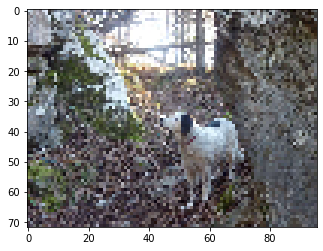

Exercise - Pixellate

Show solution

# write here
plt.imshow(img[::15,::15,:])

<matplotlib.image.AxesImage at 0x7ff58406df10>

# write here

<matplotlib.image.AxesImage at 0x7ff58406df10>

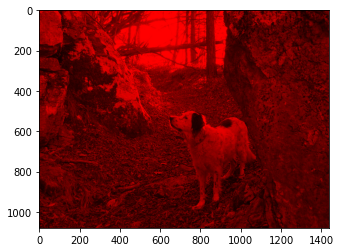

Exercise - Feeling Red

Create a NEW image where you only see red

Show solution

# write here
mimg = img.copy()
mimg[:,:,2] = 0
mimg[:,:,1] = 0
plt.imshow(mimg)

<matplotlib.image.AxesImage at 0x7ff57efd5990>

# write here

<matplotlib.image.AxesImage at 0x7ff57efd5990>

Exercise - Feeling Green

Create a NEW image where you only see green

Show solution

# write here
mimg = img.copy()
mimg[:,:,0] = 0
mimg[:,:,2] = 0
plt.imshow(mimg)

<matplotlib.image.AxesImage at 0x7ff57ef5f5d0>

# write here

<matplotlib.image.AxesImage at 0x7ff57ef5f5d0>

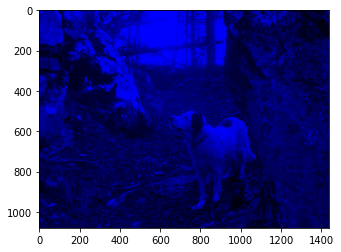

Exercise - Feeling Blue

Create a NEW image where you only see blue

Show solution

# write here
mimg = img.copy()
mimg[:,:,0] = 0
mimg[:,:,1] = 0
plt.imshow(mimg)

<matplotlib.image.AxesImage at 0x7ff57eeea510>

# write here

<matplotlib.image.AxesImage at 0x7ff57eeea510>

Exercise - No Red

Create a NEW image without red

Show solution

# write here
mimg = img.copy()
mimg[:,:,0] = 0
plt.imshow(mimg)

<matplotlib.image.AxesImage at 0x7ff57ee771d0>

# write here

<matplotlib.image.AxesImage at 0x7ff57ee771d0>

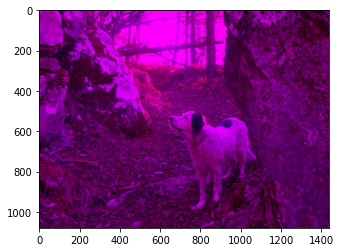

Exercise - No Green

Create a NEW image without green

Show solution

# write here
mimg = img.copy()
mimg[:,:,1] = 0
plt.imshow(mimg)

<matplotlib.image.AxesImage at 0x7ff57ede1fd0>

# write here

<matplotlib.image.AxesImage at 0x7ff57ede1fd0>

Exercise - No Blue

Create a NEW image without blue

Show solution

# write here
mimg = img.copy()
mimg[:,:,2] = 0
plt.imshow(mimg)

<matplotlib.image.AxesImage at 0x7ff57ed01390>

# write here

<matplotlib.image.AxesImage at 0x7ff57ed01390>

Exercise - Feeling Gray again

Given an RGB image, set all the values equal to red channel

Show solution

# write here
mimg = img.copy()
mimg[:,:,1] = mimg[:,:,0]
mimg[:,:,2] = mimg[:,:,0]
plt.imshow(mimg)
print(mimg)

[[[209 209 209]
  [209 209 209]
  [210 210 210]
  ...
  [117 117 117]
  [118 118 118]
  [117 117 117]]

 [[214 214 214]
  [214 214 214]
  [215 215 215]
  ...
  [112 112 112]
  [116 116 116]
  [117 117 117]]

 [[217 217 217]
  [217 217 217]
  [217 217 217]
  ...
  [105 105 105]
  [110 110 110]
  [114 114 114]]

 ...

 [[ 36  36  36]
  [ 33  33  33]
  [ 30  30  30]
  ...
  [ 72  72  72]
  [ 67  67  67]
  [ 64  64  64]]

 [[ 42  42  42]
  [ 36  36  36]
  [ 31  31  31]
  ...
  [ 70  70  70]
  [ 65  65  65]
  [ 61  61  61]]

 [[ 37  37  37]
  [ 31  31  31]
  [ 24  24  24]
  ...
  [ 68  68  68]
  [ 63  63  63]
  [ 60  60  60]]]

# write here

[[[209 209 209]
  [209 209 209]
  [210 210 210]
  ...
  [117 117 117]
  [118 118 118]
  [117 117 117]]

 [[214 214 214]
  [214 214 214]
  [215 215 215]
  ...
  [112 112 112]
  [116 116 116]
  [117 117 117]]

 [[217 217 217]
  [217 217 217]
  [217 217 217]
  ...
  [105 105 105]
  [110 110 110]
  [114 114 114]]

 ...

 [[ 36  36  36]
  [ 33  33  33]
  [ 30  30  30]
  ...
  [ 72  72  72]
  [ 67  67  67]
  [ 64  64  64]]

 [[ 42  42  42]
  [ 36  36  36]
  [ 31  31  31]
  ...
  [ 70  70  70]
  [ 65  65  65]
  [ 61  61  61]]

 [[ 37  37  37]
  [ 31  31  31]
  [ 24  24  24]
  ...
  [ 68  68  68]
  [ 63  63  63]
  [ 60  60  60]]]

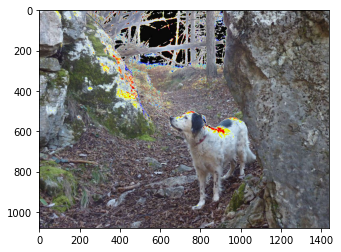

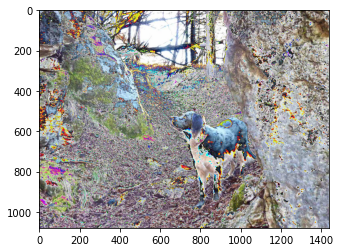

Exercise - Beyond the limit

… weird things happen:

plt.imshow(img + 10)

<matplotlib.image.AxesImage at 0x7ff57ec72b50>

mimg = img.copy()
mimg[0,0,0] = 255  # limit !!
mimg[0,0,0]

255

mimg[0,0,0] += 1   # integer overflow, cycles back - note it does not happen in regular Python !

mimg[0,0,0]

0

Note this is not so weird, technically this is called overflow and us the way CPU works with byte sized integers, so most programming languages actually behave like this.

You can get the same problem when subtracting:

mimg[0,0,0] = 0     # limit !!
mimg[0,0,0] -= 1    # integer overflow , cycles forward
mimg[0,0,0]

255

plt.imshow(img + img)

<matplotlib.image.AxesImage at 0x7ff57ebef550>

plt.imshow(img)  # + operator didn't change original image

<matplotlib.image.AxesImage at 0x7ff57eb55250>

Exercise - Gimme light

Increment all the RGB values of light, without overflowing

Show solution

light = 100

# write here
plt.imshow(img + np.minimum(255 - img, light))

<matplotlib.image.AxesImage at 0x7ff57eaf8590>

light = 100

# write here

<matplotlib.image.AxesImage at 0x7ff57eaf8590>

Exercise - When the darkness comes - with a warning

Decrement all values by light. As a first attempt, a result with a warning might be considered acceptable.

Show solution

light = -50
# write here
plt.imshow(img + np.minimum(255 - img, light))

Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).

<matplotlib.image.AxesImage at 0x7ff57ea00510>

light = -50
# write here

Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).

<matplotlib.image.AxesImage at 0x7ff57ea00510>

Exercise - When the darkness comes - without a warning

Decrement all RGB values by light, without overflowing nor warnings

Show solution

light=50
# write here
plt.imshow(img - np.minimum(img, light))

<matplotlib.image.AxesImage at 0x7ff57e9ebed0>

light=50
# write here

<matplotlib.image.AxesImage at 0x7ff57e9ebed0>

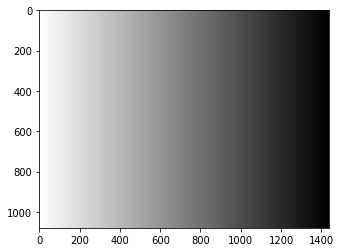

Exercise - Fade to black

Fade the gray picture to black from left to right. Try using np.linspace and np.tile

First create the horiz_fade:

Show solution

# write here
ls = np.linspace(255,0,gimg.shape[1])
horiz_fade = np.tile(ls, (gimg.shape[0],1))

# write here

gs(horiz_fade)

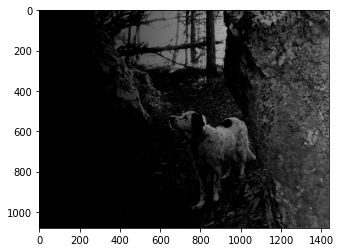

Then apply the fade - notice that by ‘applying’ we mean subtracting the fade (so white in the fade will actually correspond to dark in the picture)

Show solution

# write here
gs(gimg - np.minimum(gimg, horiz_fade))

# write here

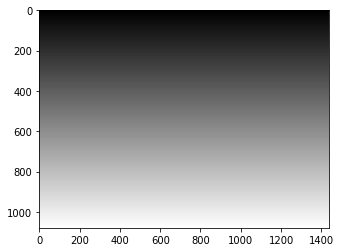

Exercise - vertical fade

(harder) First create a vertical_fade:

Show solution

# write here

ls = np.linspace(0,255,gimg.shape[0])
vertical_fade = np.repeat(ls, gimg.shape[1]).reshape(gimg.shape[0], gimg.shape[1])

# write here

gs(vertical_fade)

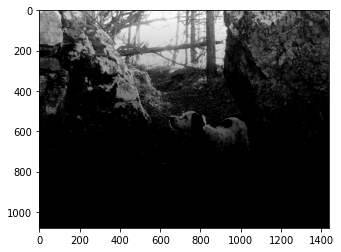

Then apply the fade:

Show solution

# write here
gs(gimg - np.minimum(gimg, vertical_fade))

# write here
