Witchcraft

Download worked project

Browse files online

The early sixteenth century saw a dramatic rise in awareness and terror of witchcraft in the troubled lands of early modern Scotland: thousands of people were executed, imprisoned, tortured, banished, and had lands and possessions confiscated. Persecution took place in courts of law: you shall analyze the evidence gathered during those dark days.

Data source: Julian Goodare, Lauren Martin, Joyce Miller and Louise Yeoman, ‘The Survey of Scottish Witchcraft’ http://www.shca.ed.ac.uk/witches/ (archived January 2003, accessed 11/1/2016).

What to do

1. Unzip exercises zip in a folder, you should obtain something like this:

witchcraft-prj
    witchcraft.ipynb
    witchcraft-sol.ipynb
    WDB_Case.csv
    jupman.py

WARNING: to correctly visualize the notebook, it MUST be in an unzipped folder !

2. open Jupyter Notebook from that folder. Two things should open, first a console and then a browser. The browser should show a file list: navigate the list and open the notebook witchcraft.ipynb

3. Go on reading the notebook, and write in the appropriate cells when asked

Shortcut keys:

• to execute Python code inside a Jupyter cell, press Control + Enter

• to execute Python code inside a Jupyter cell AND select next cell, press Shift + Enter

• to execute Python code inside a Jupyter cell AND a create a new cell aftwerwards, press Alt + Enter

• If the notebooks look stuck, try to select Kernel -> Restart

The dataset

Among the various tables, we took WDB_Case.csv as published on data.world, which contains cases brought against suspected witches, along with annotations by researchers, mostly as boolean fields.

The dataset has lots of columns, we show here only the relevant ones Case_date, CaseCommonName, Suspects_text and an excerpt of the many boolean columns:

import pandas as pd
case_df = pd.read_csv('WDB_Case.csv', encoding='UTF-8')
sel_case_df = case_df[['Case_date', 'CaseCommonName', 'Suspects_text', 'Demonic_p', 'Demonic_s', 'Maleficium_p','Maleficium_s', 'WitchesMeeting']]
sel_case_df[1986:1994]

	Case_date	CaseCommonName	Suspects_text	Demonic_p	Demonic_s	Maleficium_p	Maleficium_s	WitchesMeeting
1986	29/6/1649	3 unnamed witches	3.0	0	0	0	0	0
1987	19/8/1590	Leslie,William	NaN	0	0	0	1	0
1988	1679	McGuffock,Margaret	NaN	0	0	0	1	0
1989	1679	Rae,Grissell	NaN	0	0	0	0	0
1990	1679	Howat,Jonet	NaN	0	0	0	0	0
1991	15/10/1673	McNicol,Janet	NaN	1	1	0	1	1
1992	4/6/1674	Clerk,Margaret	NaN	0	0	0	0	0
1993	29/7/1675	Hendrie,Agnes	NaN	0	1	0	0	1

1. parse_bool_cols

Since boolean columns are so many, as a first step you will build a recognizer for them.

• Consider a column as boolean if ALL of its values are either 0 or 1

• Parse with CSV DictReader

WARNING: Have you carefully read the text above?

Most students don’t, and write bad algorithms whichdeclare a column as boolean as soon as a single 0 or a 1 are found, and manually discard columns which don’t fit such flawed logic (like NamedIndividual).

To prevent messing up simple exercises, always ask yourself:

1. Am I sure about the results of my algorithm without looking at the expected solution ? In this case, it should be obvious that if you don’t scan all cells in a column and you still declare it’s boolean you are basically resorting to being lucky.

2. Am I putting constants in the code (like 'NamedIndividual')? Whenever you have such urge, please ask first for permission to your instructor

3. Is the exercise open to interpretation, maybe because it has so many possible weird cases and relative assertions, or is the text pretty clear? In this case the scope is quite definite, so you are expected to find a generic solution which could work with any dataset.

Example (for full output see expected_bool_cols.py):

>>> bool_cols = get_bool_cols('WDB_Case.csv')
>>> print('Found', len(bool_cols), 'cols. EXCERPT:', ' '.join(bool_cols[:17]), '...')
Found 77 cols. EXCERPT:
AdmitLesserCharge AggravatingDisease AnimalDeath AnimalIllness ClaimedBewitched ClaimedNaturalCauses ClaimedPossessed CommunalSex Consulting_p Consulting_s Cursing Dancing DemonicPact Demonic_p Demonic_possess_p Demonic_possess_s Demonic_s ...

Show solution

def get_bool_cols(filename):
    """RETURN a sorted list of all the names of boolean columns"""


    import csv
    with open(filename, encoding='utf-8', newline='') as f:

        cols = set(next(csv.DictReader(f, delimiter=',')).keys())

    with open(filename, encoding='utf-8', newline='') as f:
        my_reader = csv.DictReader(f, delimiter=',')   # Notice we now used DictReader
        for diz in my_reader:
            for k in diz:

                if not (diz[k] == '0' or diz[k] == '1'):
                    if k in cols:
                        # Note: for an optimal algorithm we could also stop scanning
                        #       the rows for this column
                        cols.remove(k)

        return sorted(cols)



bool_cols = get_bool_cols('WDB_Case.csv')
print('Found', len(bool_cols), 'cols.', 'EXCERPT: ',)
print( ' '.join(bool_cols[:17]), '...')

from expected_bool_cols import expected_bool_cols
if len(bool_cols) != len(expected_bool_cols):
    print('ERROR! different lengths: bools_cols: %s    expected_bools_cols: %s' % (len(bool_cols), len(expected_bool_cols)))
else:
    for i in range(len(expected_bool_cols)):
        if bool_cols[i] != expected_bool_cols[i]:
            print('ERROR at index', i, ':')
            print('    ACTUAL:', repr(bool_cols[i]))
            print('  EXPECTED:', repr(expected_bool_cols[i]))

Found 77 cols. EXCERPT:
AdmitLesserCharge AggravatingDisease AnimalDeath AnimalIllness ClaimedBewitched ClaimedNaturalCauses ClaimedPossessed CommunalSex Consulting_p Consulting_s Cursing Dancing DemonicPact Demonic_p Demonic_possess_p Demonic_possess_s Demonic_s ...

def get_bool_cols(filename):
    """RETURN a sorted list of all the names of boolean columns"""
    raise Exception('TODO IMPLEMENT ME !')

bool_cols = get_bool_cols('WDB_Case.csv')
print('Found', len(bool_cols), 'cols.', 'EXCERPT: ',)
print( ' '.join(bool_cols[:17]), '...')

from expected_bool_cols import expected_bool_cols
if len(bool_cols) != len(expected_bool_cols):
    print('ERROR! different lengths: bools_cols: %s    expected_bools_cols: %s' % (len(bool_cols), len(expected_bool_cols)))
else:
    for i in range(len(expected_bool_cols)):
        if bool_cols[i] != expected_bool_cols[i]:
            print('ERROR at index', i, ':')
            print('    ACTUAL:', repr(bool_cols[i]))
            print('  EXPECTED:', repr(expected_bool_cols[i]))

2. fix_date

Implement fix_date, which takes a possibly partial date as a string d/m/yyyy and RETURN a string formatted as mm/dd/yyyy. If data is missing, omits it in the output as well, see examples.

Show solution

def fix_date(d):

    if '/' in d:
        case_date = d.split('/')
        if len(case_date) == 3:
            d = case_date[1]
            m = case_date[0]
            y = case_date[2]
            return "%02d/%02d/%04d" % (int(d),int(m),int(y))
        elif len(case_date) == 2:
            m = case_date[0]
            y = case_date[1]
            return "%02d/%04d" % (int(m),int(y))
    return d


assert fix_date('2/8/1649') == '08/02/1649'
assert fix_date('25/4/1627') == '04/25/1627'
assert fix_date('6/11/1629') == '11/06/1629'
assert fix_date('12/1649') == '12/1649'
assert fix_date('7/1652') == '07/1652'
assert fix_date('1560') == '1560'
assert fix_date('') == ''
# Note there is a damned extra space in the dataset (Oswald,Katharine)
assert fix_date('13/11/ 1629') == '11/13/1629'

def fix_date(d):
    raise Exception('TODO IMPLEMENT ME !')

assert fix_date('2/8/1649') == '08/02/1649'
assert fix_date('25/4/1627') == '04/25/1627'
assert fix_date('6/11/1629') == '11/06/1629'
assert fix_date('12/1649') == '12/1649'
assert fix_date('7/1652') == '07/1652'
assert fix_date('1560') == '1560'
assert fix_date('') == ''
# Note there is a damned extra space in the dataset (Oswald,Katharine)
assert fix_date('13/11/ 1629') == '11/13/1629'

3. parse_db

Given a CSV of cases, outputs a list of dictionaries (parse with CSV DictReader), each representing a case with these fields:

• name: the isolated name of the witch taken from CaseCommonName column if parseable, otherwise the full cell content

• surname: the isolated surname of the witch taken from CaseCommonName column if parseable, otherwise empty string

• case_date: Case_date column corrected with fix_date

• suspects: number of suspects as integer, to be taken from the column Suspects_text. If column is empty, use 1

primary, secondary and tags fields are to be filled with names of boolean columns for which the corresponding cell is marked with '1' according to these criteria:

• primary: a single string as follows: if a column ending with _p is marked '1', this field contains that column name without the '_p'. If column name is 'NotEnoughInfo_p' or in other cases, use None.

• secondary: sorted column names ending with _s. If col name is 'NotEnoughInfo_s' or it’s already present as primary, it’s discarded. Remove trailing _s from values in the list.

• tags: sorted column names which are not primary nor secondary

Example (full output is in expected_cases_db.py):

>>> cases_db = parse_db('WDB_Case.csv')
>>> cases_db[1991:1994]
[{'primary': 'Demonic',
  'secondary': ['ImplicatedByAnother', 'Maleficium', 'UNorthodoxRelPract'],
  'tags': ['DevilPresent', 'UnorthodoxReligiousPractice', 'WitchesMeeting'],
  'name': 'Janet',
  'surname': 'McNicol',
  'suspects': 1,
  'case_date': '10/15/1673'},
 {'primary': None,
  'secondary': [],
  'tags': [],
  'name': 'Margaret',
  'surname': 'Clerk',
  'suspects': 1,
  'case_date': '06/04/1674'},
 {'primary': None,
  'secondary': ['Demonic'],
  'tags': ['Dancing', 'DevilPresent', 'Singing', 'WitchesMeeting'],
  'name': 'Agnes',
  'surname': 'Hendrie',
  'suspects': 1,
  'case_date': '07/29/1675'}]

Show solution

import csv

def parse_db(filename):


    characterisations = [c[:-2] for c in bool_cols if c.endswith('_p')]
    other_bool_fields = [c for c in bool_cols if not (c.endswith('_p') or c.endswith('_s'))]

    with open(filename, encoding='utf-8', newline='') as f:
        my_reader = csv.DictReader(f, delimiter=',')

        ret = []
        found = {}
        for diz in my_reader:
            work = {'primary': None,
                    'secondary':[],
                    'tags':[],
                   }
            for c in characterisations:
                if diz[c + '_p'] == '1':
                    if c != 'NotEnoughInfo':
                        work['primary'] = c
                if diz[c + '_s'] == '1':
                    if c != 'NotEnoughInfo':
                        if c != work['primary']:
                            work['secondary'].append(c)
                cn = diz['CaseCommonName']
                if ',' in cn:
                    spli = cn.split(',')
                    work['name'] = spli[-1].strip()
                    if len(spli) == 2:
                        work['surname'] = spli[0].strip()
                    else:
                        work['surname'] = ','.join(spli[:-1]).strip()

                else:
                    work['name'] = cn.strip()
                    work['surname'] = ''

                sus = diz['Suspects_text']
                if sus:
                    work['suspects'] = int(sus)
                else:
                    work['suspects'] = 1

            for c in other_bool_fields:
                if diz[c] == '1':
                    work['tags'].append(c)

            work['case_date'] = fix_date(diz['Case_date'])
            ret.append(work)

        return ret


cases_db = parse_db('WDB_Case.csv')

cases_db[1991:1994]

[{'primary': 'Demonic',
  'secondary': ['ImplicatedByAnother', 'Maleficium', 'UNorthodoxRelPract'],
  'tags': ['DevilPresent', 'UnorthodoxReligiousPractice', 'WitchesMeeting'],
  'name': 'Janet',
  'surname': 'McNicol',
  'suspects': 1,
  'case_date': '10/15/1673'},
 {'primary': None,
  'secondary': [],
  'tags': [],
  'name': 'Margaret',
  'surname': 'Clerk',
  'suspects': 1,
  'case_date': '06/04/1674'},
 {'primary': None,
  'secondary': ['Demonic'],
  'tags': ['Dancing', 'DevilPresent', 'Singing', 'WitchesMeeting'],
  'name': 'Agnes',
  'surname': 'Hendrie',
  'suspects': 1,
  'case_date': '07/29/1675'}]

import csv

def parse_db(filename):
    raise Exception('TODO IMPLEMENT ME !')

cases_db = parse_db('WDB_Case.csv')

cases_db[1991:1994]

# TESTS
assert cases_db[0]['primary'] == None
assert cases_db[0]['secondary'] == []
assert cases_db[0]['name'] == '3 unnamed witches'
assert cases_db[0]['surname'] == ''
assert cases_db[0]['suspects'] == 3  # int !
assert cases_db[0]['case_date'] == '08/02/1649'

assert cases_db[1]['primary'] == None
assert cases_db[1]['secondary'] ==  ['ImplicatedByAnother']
assert cases_db[1]['tags'] ==  []
assert cases_db[1]['name'] ==  'Cristine'
assert cases_db[1]['surname'] ==  'Kerington'
assert cases_db[1]['suspects'] ==  1    # Suspects_text is '', we put 1
assert cases_db[1]['case_date'] == '05/08/1591'

assert cases_db[1991]['primary'] == 'Demonic'
#NOTE: since 'Demonic' is already 'primary', we removed it from 'secondary'
assert cases_db[1991]['secondary'] == ['ImplicatedByAnother', 'Maleficium', 'UNorthodoxRelPract']
assert cases_db[1991]['tags'] == ['DevilPresent', 'UnorthodoxReligiousPractice', 'WitchesMeeting']
assert cases_db[1991]['name'] == 'Janet'
assert cases_db[1991]['surname'] == 'McNicol'
assert cases_db[1991]['suspects'] == 1    #  Suspects_text is '', we put 1
assert cases_db[1991]['case_date'] == '10/15/1673'

assert cases_db[0]['case_date'] == '08/02/1649'  # 2/8/1649
assert cases_db[1143]['case_date'] == '1560'     # 1560
assert cases_db[924]['case_date'] ==  '07/1652'  # 7/1652
assert cases_db[491]['suspects'] == 15           # 15

#composite name
assert cases_db[249]['name'] == 'Francis'     # "Stewart, Earl of Bothwell,Francis"
assert cases_db[249]['surname'] == 'Stewart, Earl of Bothwell'

from expected_cases_db import expected_cases_db
from pprint import pprint
for i in range(len(expected_cases_db)):
    if cases_db[i] != expected_cases_db[i]:
        print('ERROR at index %s!' % i)
        print('ACTUAL:')
        pprint(cases_db[i])
        print('EXPECTED:', )
        pprint(expected_cases_db[i])
if len(cases_db) != len(expected_cases_db):
    print('ERROR! different lengths: cases_db: %s    expected_cases_db: %s' % (len(cases_db), len(expected_cases_db)))
assert cases_db == expected_cases_db

4. plot_cases

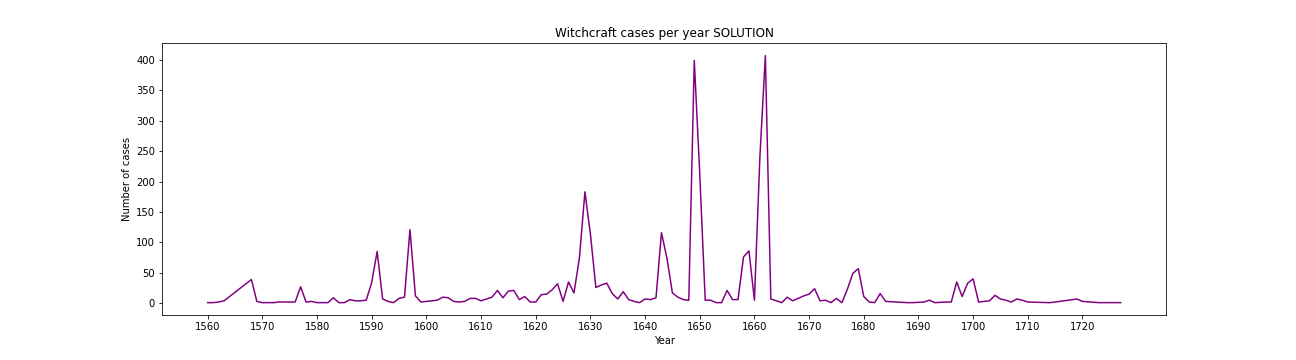

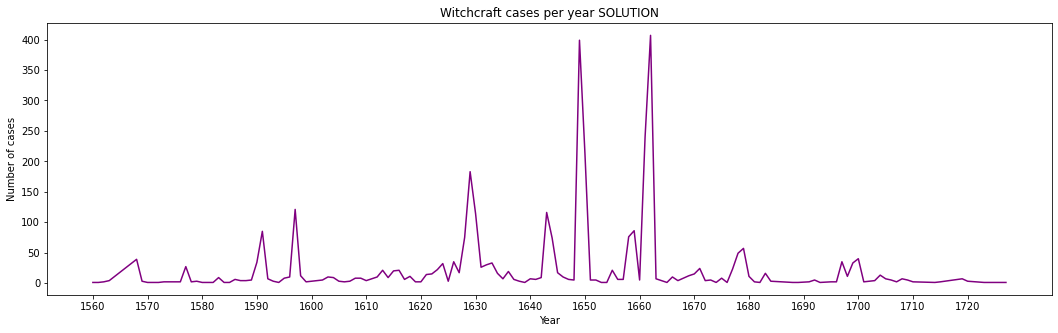

Given the previously computed db, plot the number of cases per year.

• plot the ticks with 10 years intervals, according to the actual data (DO NOT use constants like 1560 !!)

• careful some cases have no year

Show solution

def plot_cases(db):

    import numpy as np
    import matplotlib.pyplot as plt
    from collections import Counter

    years = [int(diz['case_date'].split('/')[-1]) for diz in db if diz['case_date']]
    hist = Counter(years)
    xs = sorted(hist.keys())
    ys = [hist[x] for x in xs]

    fig = plt.figure(figsize=(18,5))
    plt.plot(xs, ys, color='purple')

    plt.title("Witchcraft cases per year SOLUTION")
    plt.xlabel('Year')
    plt.ylabel('Number of cases')

    tks = np.arange(min(xs), max(xs), 10)
    plt.xticks(tks, tks)

    plt.show()


plot_cases(cases_db)

def plot_cases(db):
    raise Exception('TODO IMPLEMENT ME !')

plot_cases(cases_db)
